Wifi Smart Switch for Led Lighting

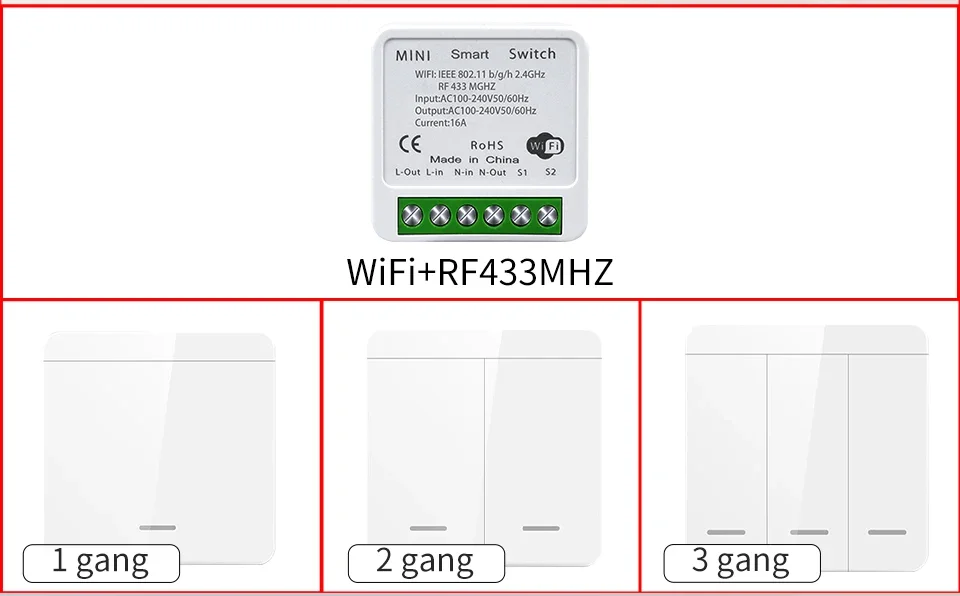

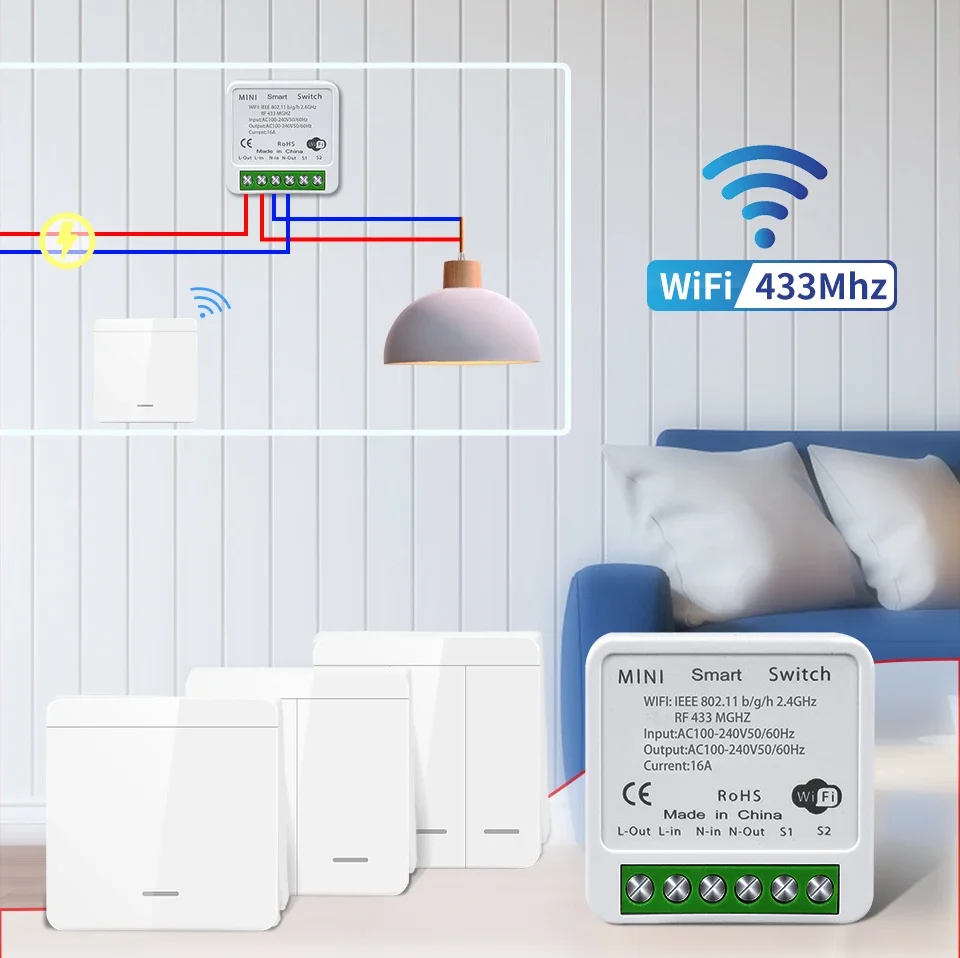

Product Introduction: WiFi+RF Relay Controller & Wireless Wall Switch System

Key Notes:

• The wall switch (RF-only) cannot control lights directly—it must pair with the WiFi+RF receiver to function.

• The WiFi+RF receiver enables remote control via WiFi (Tuya/Smart Life app), voice commands, and RF signals.

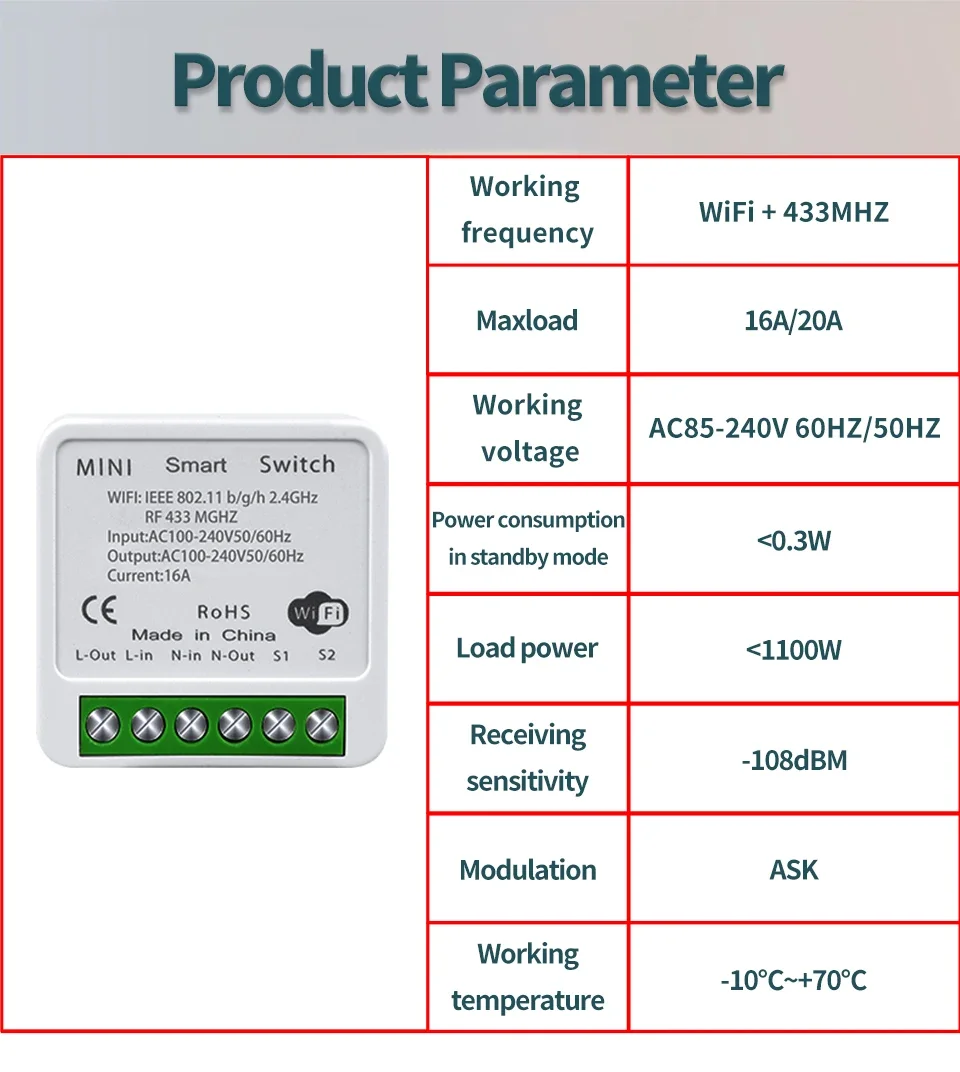

WiFi + RF Controller (Receiver) Specifications

• Input Power: AC 85–240V

• RF Frequency: 433MHz

• WiFi Frequency: 2.4GHz

• WiFi Standard: IEEE 802.11 b/g/n

• Max Current: 16A

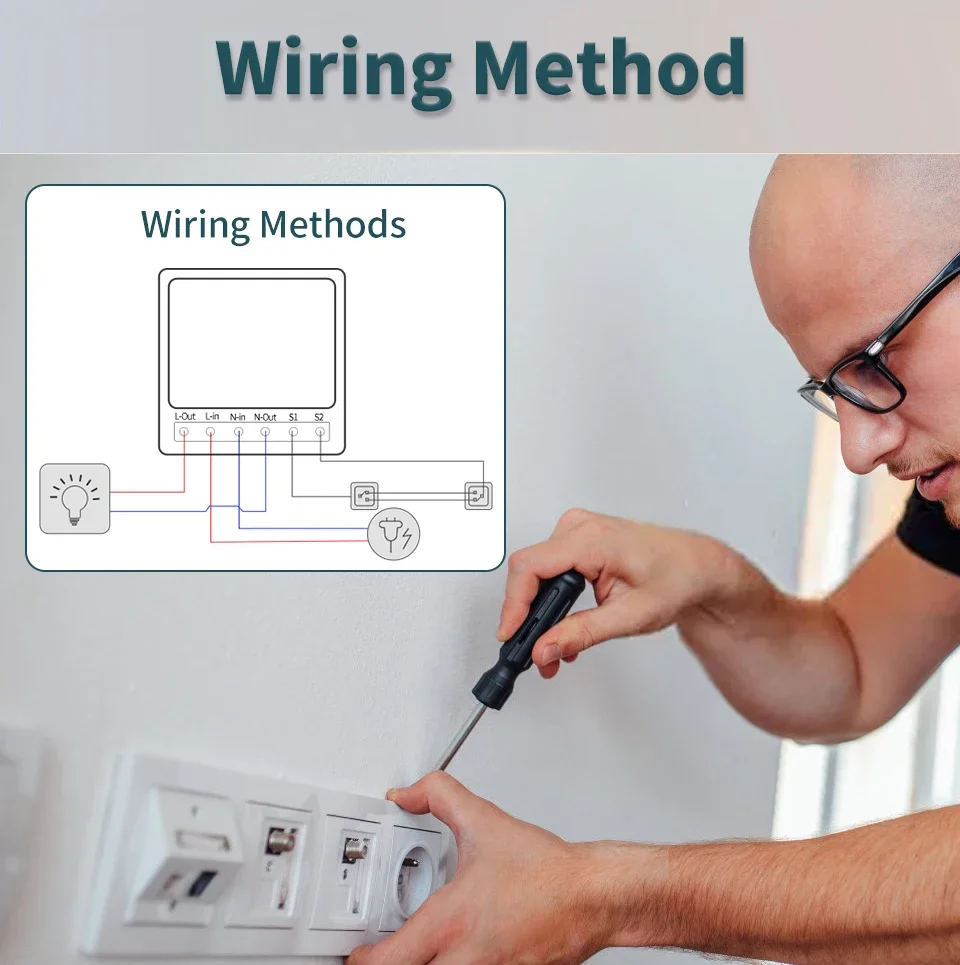

• Ports: L/N (Live/Neutral)

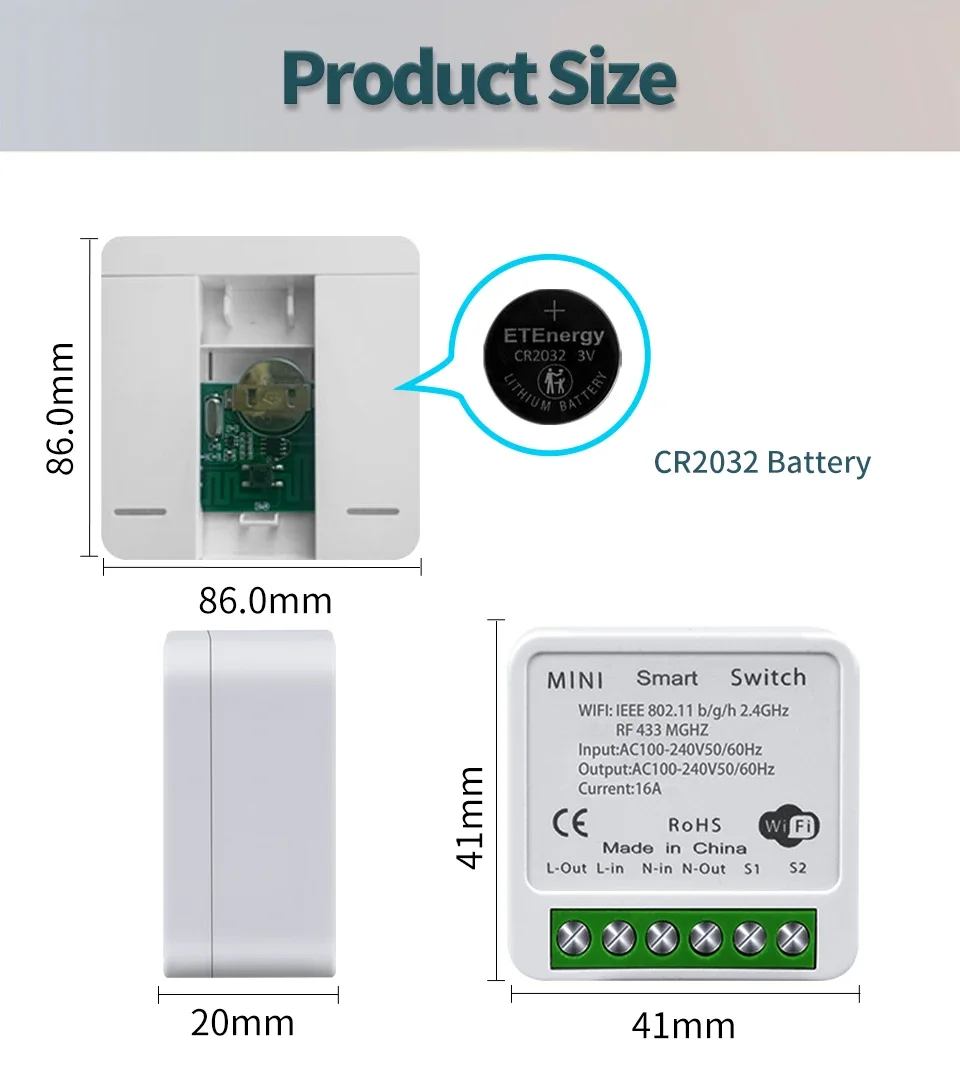

• Size: 41×41×20 mm

• Shell Material: Flame-retardant ABS

• Certifications: CCC, CE, RoHS

Features:

WiFi Control – Works with Tuya/Smart Life App

Voice Control – Compatible with Google Home & Amazon Alexa

Timer Function – Schedule on/off automation

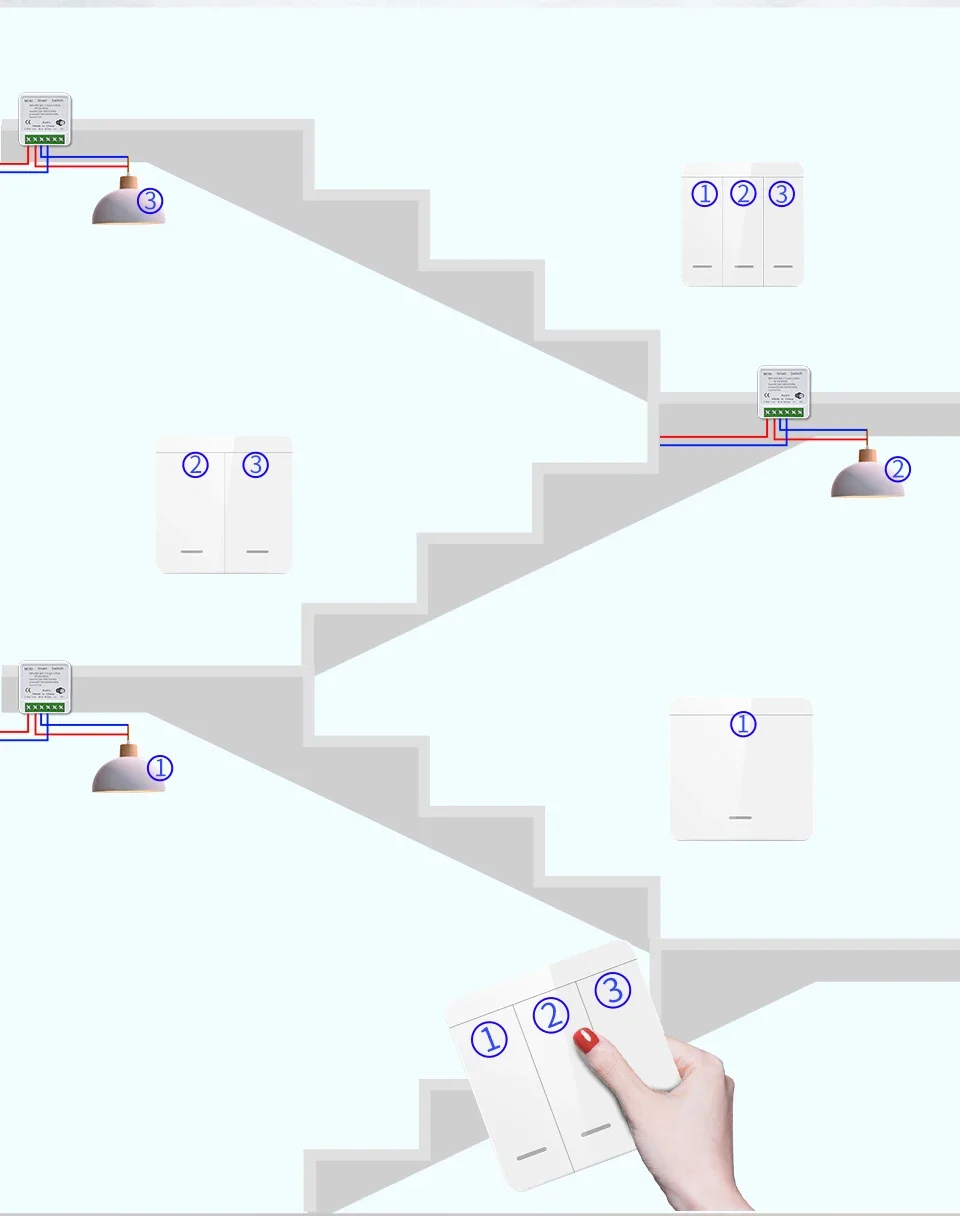

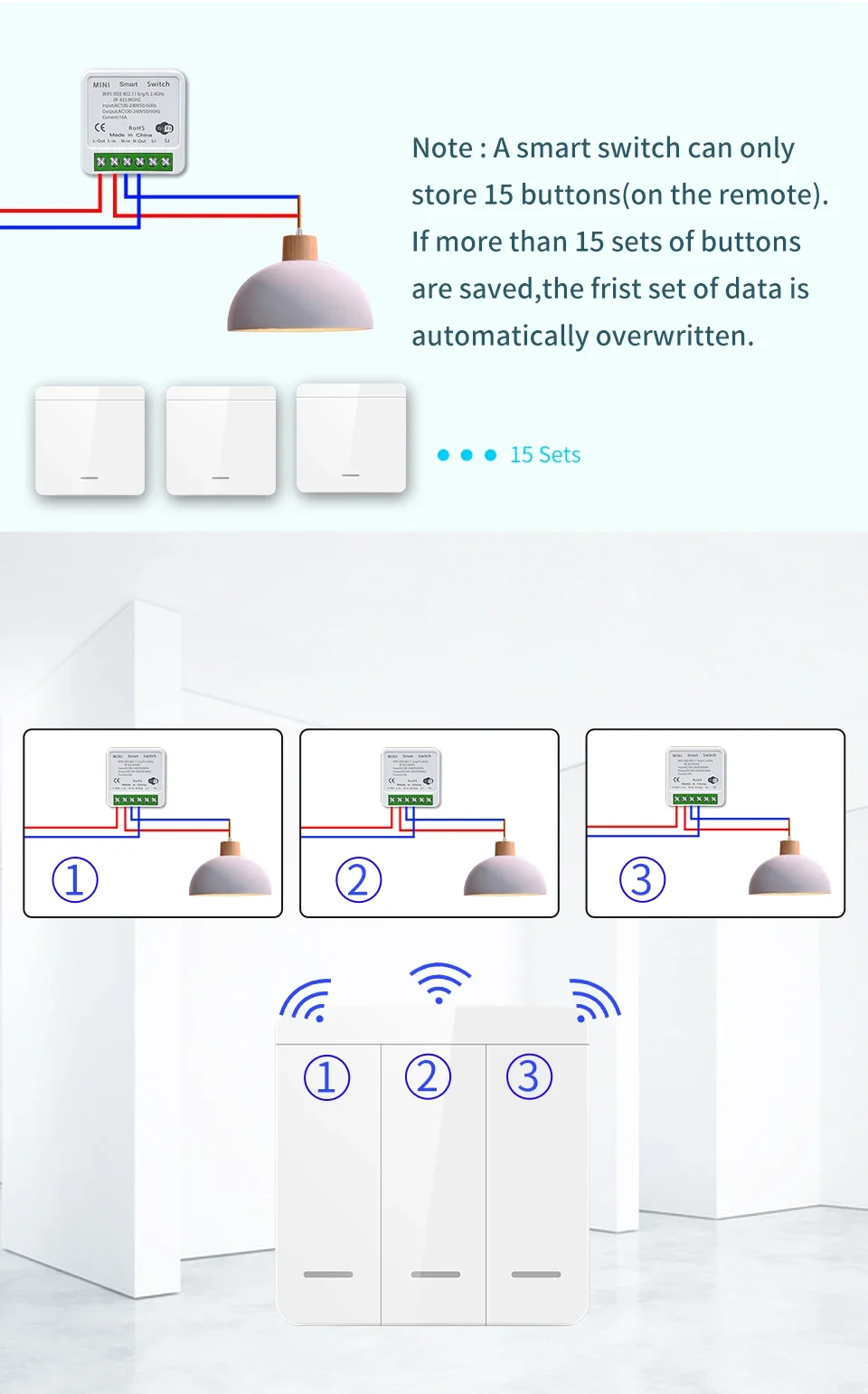

RF Remote Pairing – Syncs with wireless wall switches

Wireless Wall Switch (RF Transmitter) Specifications

• Working Frequency: 433MHz

• Standby Power Consumption: <1μA

• Transmitter Power: <10mW

• Coding Type: EV1527 Learning Code

• Modulation: ASK

• Operating Temperature: -10°C to +70°C

• Size: 86×86×15 mm (Standard EU wall plate size)

• Control Range: Up to 30m (open space)

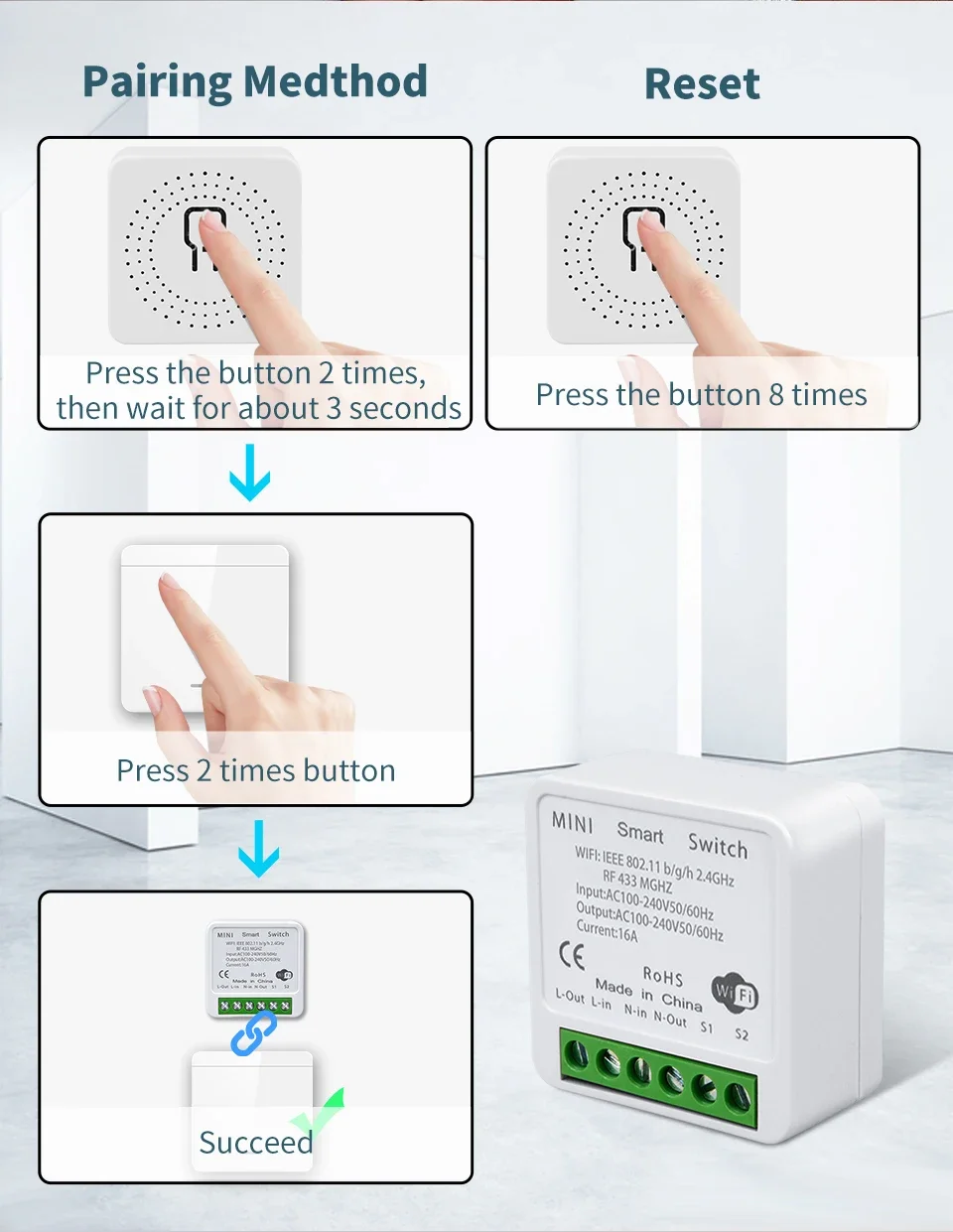

Pairing Instructions

How to Pair the Wall Switch with the Receiver:

Press the learning button (on the Receiver) twice → Wait 3 seconds.

Press any button on the wall switch → Wait 3 seconds.
Successfully paired when the receiver LED blinks.

How to Clear Paired Signals:

Press the learning button (on the Receiver) 8 times → Wait 3 seconds.

Key Corrections & Improvements:

Fixed Errors:

10"C" → -10°C (correct temperature unit).

70*C" → +70°C.

Voice Control by Google Home,Amazon Alex" → "Amazon Alexa".

Added missing units (e.g., μA, mW).

Enhanced Clarity:

Clearly separated receiver and wall switch specs.

Simplified pairing steps with numbered instructions.

Added Technical Details:

Included control range and shell material for transparency.
